An EMD GP60 is a 4-axle (B-B) diesel-electric locomotive built by General Motors Electro-Motive Division between 1985 and 1994. The GP60 was EMD's first engine that was classified as a "third-generation" locomotive. Hidden behind the electrical cabinet doors on the rear wall of the cab, the GP60 concealed a trio of microprocessors that monitored and managed a host of engine, cooling system and control functions. The engine's on-board microprocessors replaced hundreds of wiring circuits, dozens of relays and all but one module card, making it an improvement among EMD's engines.

Power was provided by a 16-cylinder 710G3A diesel engine, which could produce 3,800 horsepower (2,800 kW). This locomotive was 59 feet 9 inches long and featured a 3,700-US-gallon (14,000 L) fuel tank. The GP60 series shared the same frame as the GP59.

Horsepower Wheel Arrangement Gearing Weight Tractive Effort DRGW Class Builder
3800 B-B 70:17* 287000* 100000* DE B-B ?? EMD
* Gearing, weight & tractive effort specifications from [170]
Road # EMD Builder # Year Purchased Retired Notes
3154 896043-1 5/1990 . .
3155 896043-2 5/1990 . .

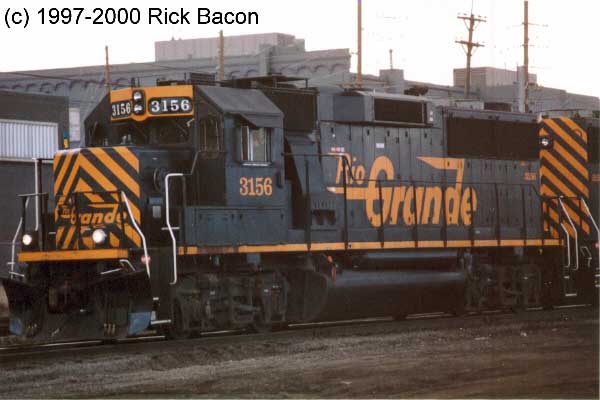

3156 896043-3 5/1990 . .
